Products:
Evidence Cabinet
|
Filtered Storage Cabinet
• Task specific design
• Optimized space utilization
• Blends with existing equipment
• Infinite variety of design possibilities

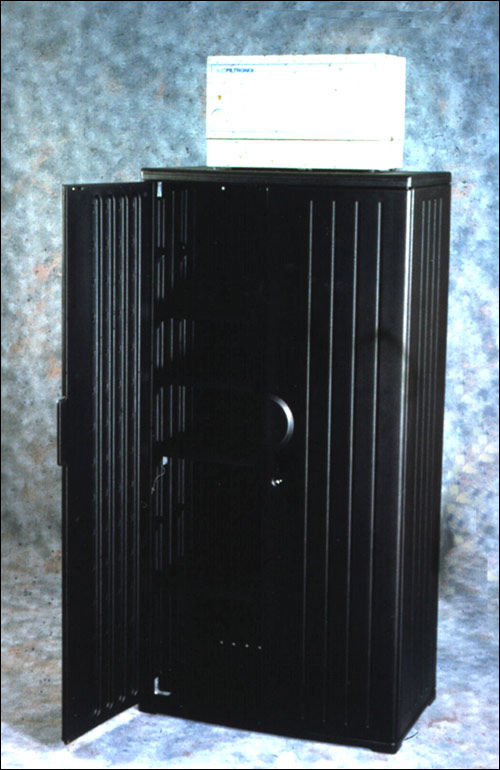

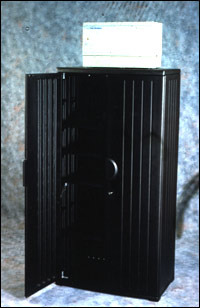

The Airfiltronix Filtered Storage Cabinet is a low cost approach to contamination control and containment. The unit combines a PVC and ABS corrosion resistant cabinet with a blower and filtration unit. A variable speed blower provides airflow adjustment that can draw up to 200 CFM through the cabinet for controlled drying of evidence. Installation is easy and requires no tools for setup. The unit can be easily washed down with a solution of suapy water, alcohol, or a strong household detergent. For security purposes, when used as an evidence cabinet, a chrome plated hasp lock is provided with every unit. Inside the cabinet are four adjustable shelves measuring 28”W x 20”D, providing ample storage for evidence , bags and containers.
The filter housing is capable of stacking a combination of filters up to seven inches high. The filters can be HEPA filters for particulates of a combination of HEPA and activated carbon for particulates and odor control.
Specifications |
Model No : EC-36 Filtered Storage Cabinet with Filters (Light Kit optional)
Overall Size: 86"W x 22"D x 36"H (with blower)
Weight: 160 lbs
Power requirements: 115V AC, 100 Watts, 50/60 Hz, 230V AC optional for export
Weight: 80 lbs., approx.
Blower: 530 CFM, (free air), Backward Curved Impeller
Noise Level: A weighted noise level 68dB at 1 meter
|
|
|
 |
